Name: monterey.MRY.buildings_lidar

Display Field: notes

Type: Feature Layer

Geometry Type: esriGeometryPolygon

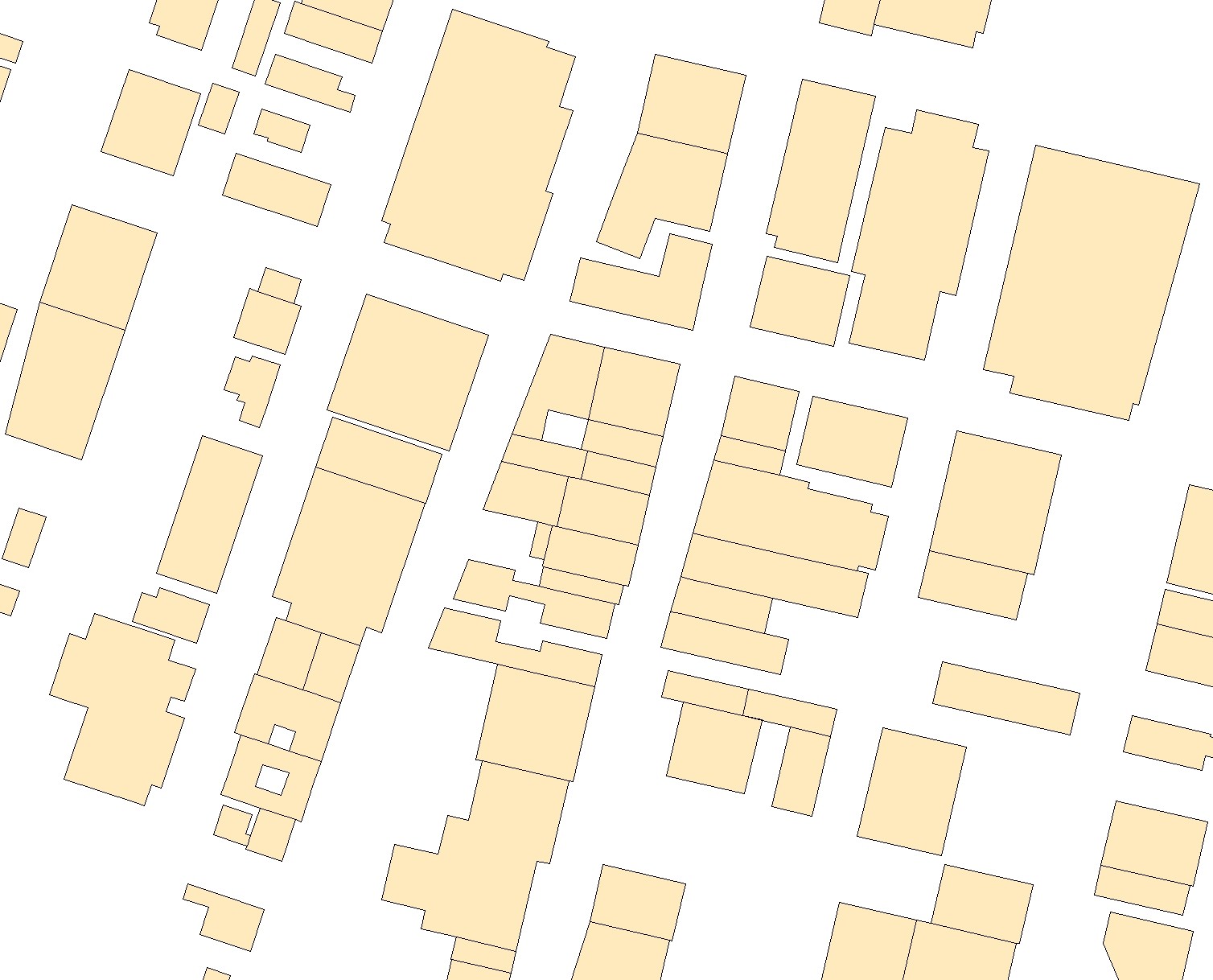

Description: Building footprint geometry and height attributes were extracted from 2010 ARRA LiDAR point data using ArcGIS 10 and Qcoherent's LP360 Extractor module. Feature attributes are described in the table below. All units are feet. Further documentation of data and workflow are available on request to AMBAG.notes50 char. text field used for feature commentsht_minMinimum height derived as [Minimum LiDAR point elevation - DEM ground elevation]ht_maxMaximum height derived as [Maximum LiDAR point elevation - DEM ground elevation]ht_source10 char. text field used to indicate which elevation source was used to record building heightDEMDEM ground elevation for a representative point within each building featurendsmAlternate building height derived from the nDSM layer, like above, sampling from a representative point within each building featureExtent25 char. text field describing the community/region or collection of tiles that the feature was processed withinpntCntnumber of LiDAR points classified as 'Building' within the feature polygonELAVAverage elevation of LiDAR points classified as 'Building' within the feature polygonELMNMinimum elevation of LiDAR points classified as 'Building' within the feature polygonELMXMaximum elevation of LiDAR points classified as 'Building' within the feature polygonELSDStandard Deviation of elevation of LiDAR points classified as 'Building' within the feature polygonht_aveUsed as the primary building height field. In most cases, this is value is calculated as: [ELAV – DEM]. In other cases, this value is entered from the nDSM field. Those cases are noted as 'nDSM' in the ht_source' field.Notes250 char. text field used for additional feature comments, specifically identifying footprints that had overlap with adjacent features.Shape_LengArcGIS length fieldShape_AreaFeature area calculated in square ft.

Copyright Text: Association of Monterey Bay Area Governments 445 Reservation Rd. Suite G P.O. Box 809 Marina, CA 93933 Contract GIS Analyst: Russell White e-mail: rwhite@calpoly.edu

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 5688541.44659014
YMin: 2091222.6251187325
XMax: 5756678.570158139
YMax: 2150970.2093634754
Spatial Reference: 102644  (2228)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [215, 194, 158, 255]
Outline:
Style: esriSLSSolid
Color: [110, 110, 110, 0]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• notes ( type: esriFieldTypeString, alias: notes, length: 50 )
• ht_min ( type: esriFieldTypeDouble, alias: ht_min )
• ht_max ( type: esriFieldTypeDouble, alias: ht_max )
• ht_source ( type: esriFieldTypeString, alias: ht_source, length: 10 )
• DEM ( type: esriFieldTypeDouble, alias: DEM )
• ndsm ( type: esriFieldTypeDouble, alias: ndsm )
• Extent ( type: esriFieldTypeString, alias: Extent, length: 25 )
• PntCnt ( type: esriFieldTypeDouble, alias: PntCnt )
• ELAV ( type: esriFieldTypeDouble, alias: ELAV )
• ELMN ( type: esriFieldTypeDouble, alias: ELMN )
• ELMX ( type: esriFieldTypeDouble, alias: ELMX )
• ELSD ( type: esriFieldTypeDouble, alias: ELSD )
• ht_ave ( type: esriFieldTypeDouble, alias: ht_ave )
• Notes2 ( type: esriFieldTypeString, alias: Notes2, length: 50 )
• Shape_STAr ( type: esriFieldTypeDouble, alias: Shape_STAr )
• Shape_STLe ( type: esriFieldTypeDouble, alias: Shape_STLe )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
